GNSS & GPS Survey Instruments

Matrix Ultra integrates a high-efficiency 2/5W radio module to achieve the engineering optimal balance between power consumption and communication range. By dynamically adjusting transmit power, signal quality, and energy consumption, it delivers the best energy-performance efficiency (EPE) across various operational scenarios.

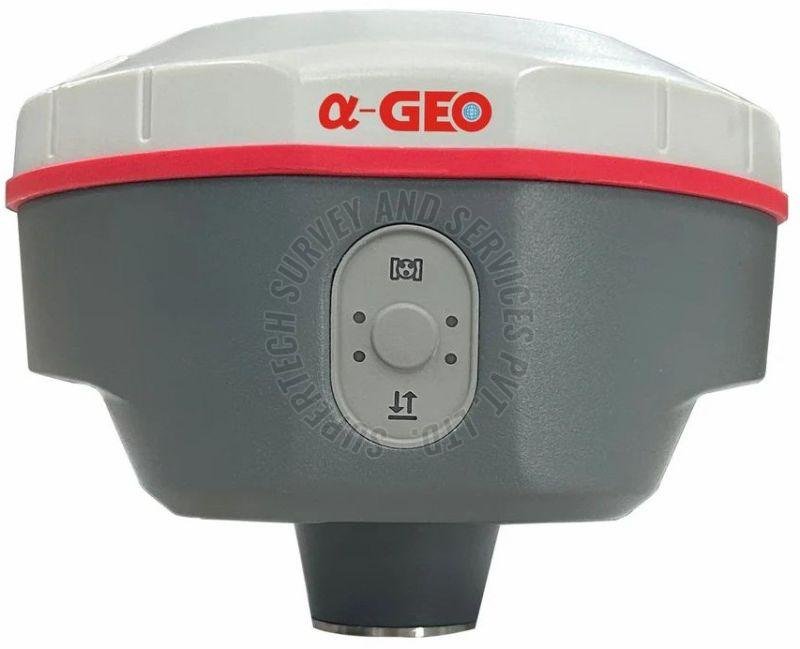

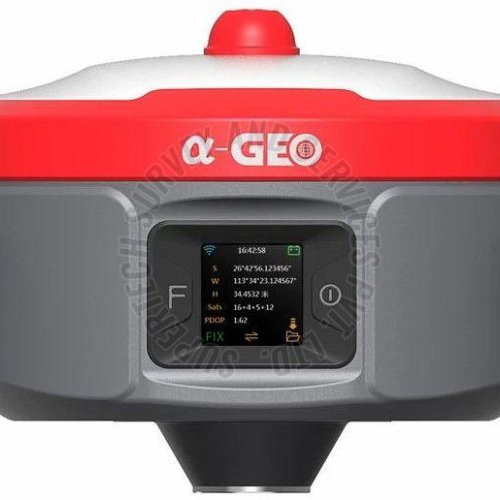

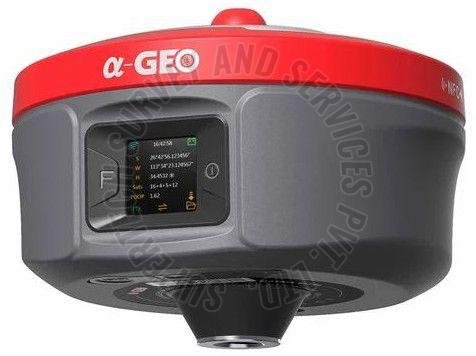

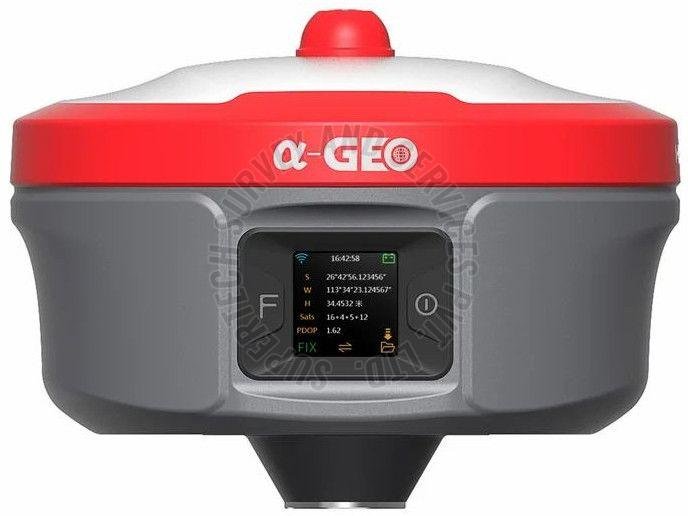

Super Base GNSS Receiver Matrix Ultra-B

• Reliable Long-Range RF Solution--Adopting 5W High-Power Industrial-Grade RF Module

• AlphaTalk15 Protocol Ensures 20km+ Stable Links

• Uninterruptible Power Solution for Mission-Critical Field Work

• Ionospheric Disturbance Mitigation Technology for Enhanced RTK Positioning Accuracy

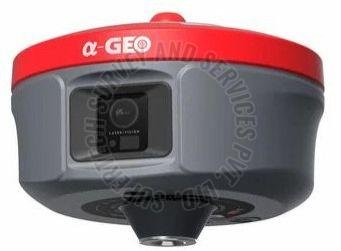

Dual-Camera & Laser Hybrid Measurement System

Precision Data Acquisition Redefined

• Side Camera - Photogrammetry Engine

The dual RGB/IR sensor system performs simultaneous image capture and centimeter-grade (±2cm) real-time geotagging through direct pixel-to-position mapping.

• Downward Camera - AR Stakeout Assistant

Real-time AR design overlay on terrain, supported by a 84° distortion-free FOV and 20fps RTK video for millimeter-accurate stakeout.

• Laser Measurement Module

Featuring a Class 3A eye-safe laser with reflectorless range, this system enables rapid 'walk-and-map' continuous ranging at high sampling rates for efficient position data collection.

Multi constellationL300 with its 1408 channels full next generation GNSS chipset and ability to support multiple satellite constellations including GPS, Glonass, BeiDou, Galileo, QZSS, SBAS and IRNSS provides precise and accurate spatial data for all users around the world.

WiFi and WebUlL300 serves as a Wi-Fi hotspot, so users can easily log in, manage status, set configuration, or download static and PPK raw data via advanced WebUl using computers, smartphones, or other Wi-Fi-enabled electronic devices without the need third-party software or cable.

The IMU 60° inclination sensorThe L300 features a fast-initializing inertial measurement unit (IMU), which is calibration-free and immune to magnetic interference. All users can use this technology to pick or stake topographic points up to 60°.

GSM and UHF radiosA fast Internet connection is guaranteed with a built-in 4G module that accelerates the reception of correction data using all telecommunication signals and bands. The L300 features an integrated internal Tx/Rx UHF radio ranging from 410 MHz to 470 MHz with selectable frequency providing the ability to connect and collect accurate real-time data in Base/Rover mode.

Battery and power supplyL300 comes with 6800mAh large capacity lithium-ion internal battery that supports USB Type-C fast charging which allows users to work for more than 9 hours in daily field work.

IP67Choosing a small, lightweight yet professional and rugged GNSS receiver has always been a concern among professional surveyors. The L300 with its high-quality magnesium alloy body offers such benefits without decreasing quality or significantly increasing price.

Working methodsEach surveyor must operate and choose the suitable working method based on the project requirements and the required precision. To work in such conditions, users need a device that can work in different modes such as Static, Network RTK, UHF RTK, PPK and so on. L300 offers everything you need in one package!

Innovation Breakthrough!

Brand-New Matrix III

Ushers in a New Era of 100-Meter Laser Measurement

With the rapid advancement of technology, laser measurement has reached a groundbreaking milestone! ALPHAGEO Matrix III, equipped with a high-performance laser module, redefines industry standards with exceptional stability and precision, delivering a maximum measurement range of 100 meters—effortlessly meeting long-distance ranging demands in complex environments.

• Extended Range: Shattering traditional limitations, it effectively covers distances up to 100 meters.

• High Precision: Incorporating advanced algorithms and optical design, it achieves centimeter-level accuracy, ensuring reliable data output.

• Superior Environmental Adaptability: With strong anti-interference capabilities, it maintains stable performance even in low-light conditions and under temperature variations.

Multi Constellations

NetBOX2 with its 1408 channels new generation full GNSS chipset & ability to support multi satellite constellation including GPS, GLONASS, BEIDOU, GALILEO, QZSS, SBAS and IRNSS provides precise and accurate spatial data for all users around the world.

IMU Tilt Sensor

It is equipped with a fast initialization, calibration free & immune to magnetic interference Inertial Measurement Unit(IMU). All users can use this technology to collect or stakeout topo points up to 60°.

GSM & UHF Radio

A fast internet connection is guaranteed with a built-in 4G module that accelerate receiving corrections data using all telecommunication signals and bands. NetBOX2 comes with an integrated Rx internal UHF radio that ranges from 410MHz to 470MHz with selectable frequency providing ability to connect and collect accurate real time data in Rover mode.

Battery & Power

NetBOX2 is delivered with internal large capacity Lithium-ion battery supporting USB type-C fast charging which allows users to work for more than 14 hours in daily field work.

 surveying professionals seeking accessible workflow solutions, the GeoMax Zenith55 is a versatile GNSS smart antenna offering professional-grade performance in a durable, easy-to-use design. The Zenith55 empowers growing businesses to complete projects quickly and efficiently with tilt compensation, 600+ channels and multi-constellation support and full integration with the X-PAD Software Suite – generating a strong return on investment.

Smart Choice for Growing Businesses

The Zenith55 GNSS smart antenna delivers professional-grade performance with practical value in mind, empowering growing businesses to tackle even challenging construction and surveying projects. With advanced features like tilt compensation, over 600 channels, multi-constellation support, and a robust IP68-rated design, the Zenith55 provides the reliability and durability you need while also protecting your resources.Practical Innovation for Productive Workflows

Whether you're expanding your operations or upgrading your equipment, the Zenith55 strikes the ideal balance between cutting-edge capabilities and practical value, backed by outstanding comprehensive GeoMax support.

The Zenith55's calibration-free tilt compensation enables fast data collection without levelling the pole. It enhances productivity by reducing measurement time and hassle.

With its full integration with GeoMax X-PAD software, the Zenith55 fits into streamlined, flexible data workflows that help you get more done in less time.

RTK GNSS receiver Mod.L1

High precision in RTK mode, one click Fixed solution!Compact and lightweight GNSS receiver (only 116 g), equipped with 1408 channels, tracks double frequency signals and above all all satellite constellations (GPS, Glonass, BeiDou, Galileo, QZSS, SBAS, IRNSS).L1 can communicate with Android devices such as tablets, smartphones, and is enabled to receive RTK differential corrections from regional and private GNSS networks (Italpos - Topnet Live) and can be managed by the most popular field software for Topographic Surveys, Tracking or GIS.GNSS RTK L1 was designed as a rover RTK solution to receive differential corrections from the network. However, thanks to the internal radio, the receiver can receive RTK corrections from a base that transmits them via UHF radio modem, in the 410-470 MHz frequencies with TrimTalk or Satel protocol.
